8mm PolyChain GT, 8MX-19S-108, Steel Bar Stock

Part Number: 19G-19-S-BAR
Current Inventory: 2
Quantity:

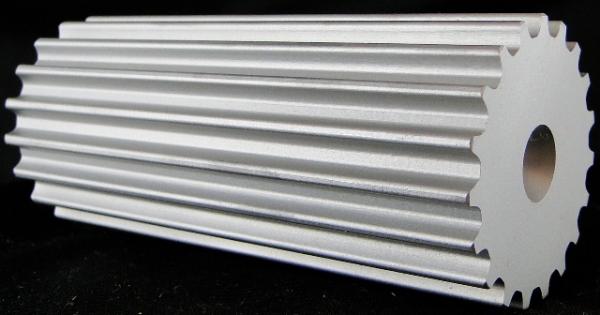

Timing Belt Pulley Bar Stock

Specifications
  • : 8mm PolyChain GT
  • Number of Teeth (Grooves): 19 tooth
  • Timing Belt Width (mm): 108mm
  • Bore / Keyway: Solid - No Bore
  • Application Type: Prototype
  • Pitch Diameter (inches): 1.905"
  • Tooth O.D. (inches): 1.842"
  • Material / Finish: Steel / No Finish
  • Flanged (Belt Guides): No
  • Recommended Flange (Belt Guide): 30XL
  • Bore Type: Solid - No Bore
  • Set Screws: No
