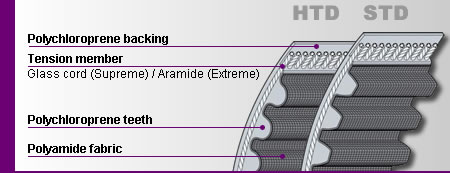

SynchroForce Supreme Timing Belt Construction

Incorporating completely new material compounding, the latest timing belts of the SynchroForce heavy duty series pave the way for economic drive solutions, particularly in the transmission of high power outputs and torques. Excellent tooth stability and resistance to wear ensure a very long service life, making the timing belts suitable for heavy duty applications beyond the capability of earlier timing belt generations, while retaining the well-proven benefits of SynchroForce rubber timing belts.

SynchroForce SUPREME timing belt was developed specially for use with dynamically stressed drives transmitting high power outputs. The new material compounding guarantees unsurpassed fatigue strength under reverse bending stresses together with high wear resistance.

Timing Belt Profiles and Timing Belt Pitches (Currently Available)

  • 8mm HTD
  • 8mm STD
  • 8mm CTD

Properties

  • Moderate oil resistance
  • Remains stable over a temperature range from -20 °C to +100 °C according to application
  • Resistant to ozone and suitable for use in tropical climates
  • Electrically conductive according to ISO 9563
  • SynchroForce Supreme timing belt has a glass cord tension member for high dynamic demands

Areas of Application

SynchroForce SUPREME heavy-duty timing belts are suitable for applications requiring a large power output to be transmitted at high belt speeds 60 m/s (11,811 ft/min).

ContiTech Literature

SynchroForce Timing Belt

Timing Belt Calculators

Pfeifer Industries has developed a online calculator for identifying the correct timing belt length for your application and/or for calculating shaft center to center distances.

Timing Belt Length and Shaft Center to Center Distance Calculator

A downloadable calculator from Continental ContiTech is also offered that allows the end-user to calculate which timing belt is best suited for their application.

ContiTech – Mechanical Power Transmission Drive Design Calculator

Online Catalog

Timing Belts – Rubber

Timing Belt Lengths and Widths (Currently Available)
