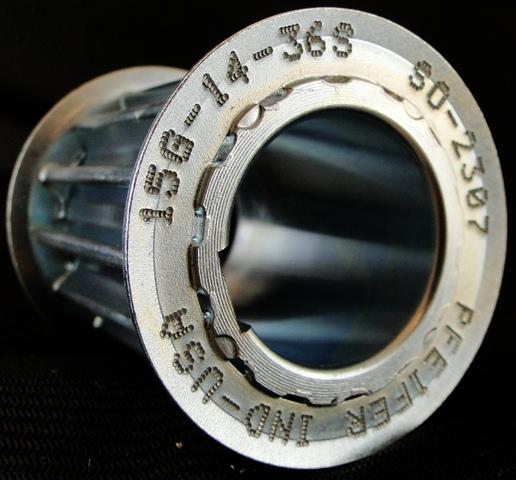

8mm PolyChain GT, 14t-8m-36m, 22mm Bore / 7mm Keyway

Part Number: 15G-14-36S
Current Inventory: 0
Quantity:


Timing Belt Pulley

Specifications
  • Timing Belt Pitch / Profile: 8mm PolyChain GT
  • Number of Teeth (Grooves): 14 tooth
  • Timing Belt Width (mm): 36mm
  • Bore / Keyway: 22mm Straight Bore / 7mm Keyway
  • Application Type: Honda GX Engine with 2:1 Wet Clutch
  • Pitch Diameter (inches): 1.404"
  • Tooth O.D. (inches): 1.341"
  • Material / Finish: Steel / Zinc Clear Chromate Plating
  • Flanged (Belt Guides): Yes
  • Flange / Belt Guide O.D. (inches): 1.563"
  • Bore Type: Straight Bore
  • Set Screws: No
