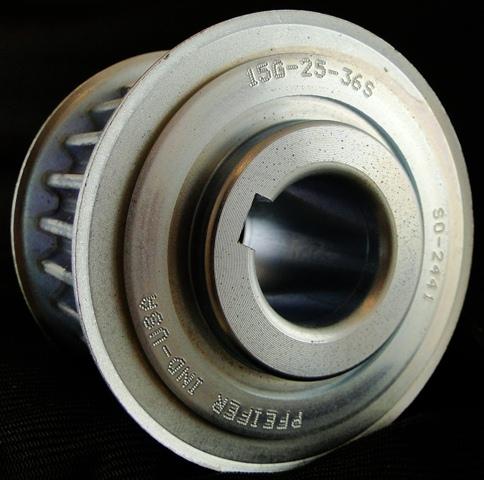

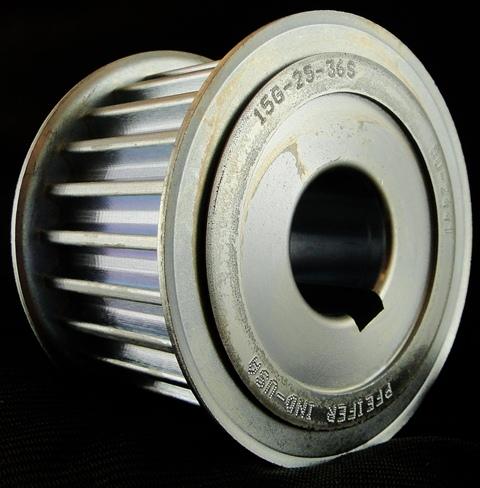

8mm PolyChain GT, 25t-8m-36m, 22mm Bore / 7mm Keyway

Part Number: 15G-25-36S
Current Inventory: 7
Quantity:


Timing Belt Pulley

Specifications
  • : 8mm PolyChain GT
  • Number of Teeth (Grooves): 25 tooth
  • Timing Belt Width (mm): 36mm
  • Bore / Keyway: 22mm Straight Bore / 7mm Keyway
  • Application Type: Honda GX Engine with 2:1 Wet Clutch
  • Pitch Diameter (inches): 2.506"
  • Tooth O.D. (inches): 2.443"
  • Material / Finish: Steel / Zinc Clear Chromate Plating
  • Flanged (Belt Guides): Yes
  • Flange / Belt Guide O.D. (inches): 2.750"
  • Bore Type: Straight Bore
  • Set Screws: No
